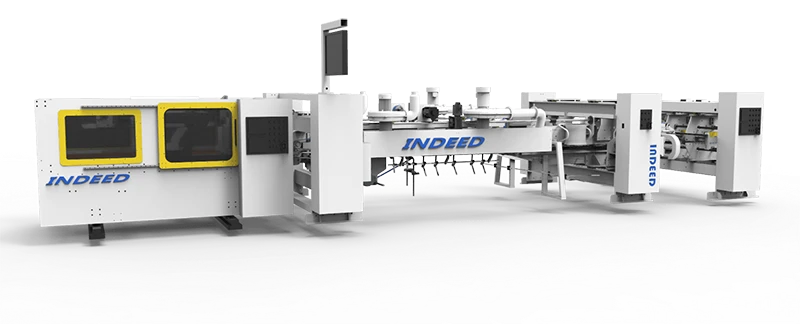

An integrated solution for medium-to-large carton factories, combining box pasting and stitching in one system. Featuring full servo control for higher speed, stability, and lower failure rates. Seamlessly connects with printing machines to enable continuous production from cardboard to finished cartons. With automatic alignment, precise stitching, stable pasting, and intelligent counting, it significantly improves efficiency and reduces labor costs—ideal for high-volume, standardized, high-speed production.
Parameters
| Model | IG-920D | IG-924D | IG-1224D | IG-1228D | |
| Max Gluer Speed (M/M) | 350 | ||||
| Max Stitch Speed (Nails/M) | 1200 | ||||
| L2 | Max (mm) | 700 | 750 | 800 | 850 |
| Min (mm) | 230 (250) | ||||
| W1 | Max (mm) | 600 | 650 | 700 | 750 |
| Min (mm) | 130 (200) | ||||
| L2+W1 | Max (mm) | 1000 | 1200 | 1200 | 1400 |
| Min (mm) | 360 (450) | ||||
| D2 | Max (mm) | 900 | 900 | 1200 | 1200 |
| Min (mm) | 300 (400) | ||||
| Glue Lap Width | 35mm-40mm | ||||
| Box Height | ≥70mm | ||||
| Suitable For Sheet | E-AB | ||||
Parameters
Parameters
| SCRAPS CLEANING UNIT (OPTION) |
| ROLLING GLUE UNIT (OPTION VALCO OR HHS) |
| CREASING AND FORMING UNIT |
| FOLDING UNIT |
| SLAPPING UNIT |
| STITCHING UNIT |
| AUTOMATIC TURN FOLDING |
| COUNTER EJECTOR UNIT（TOP LOADING） |
