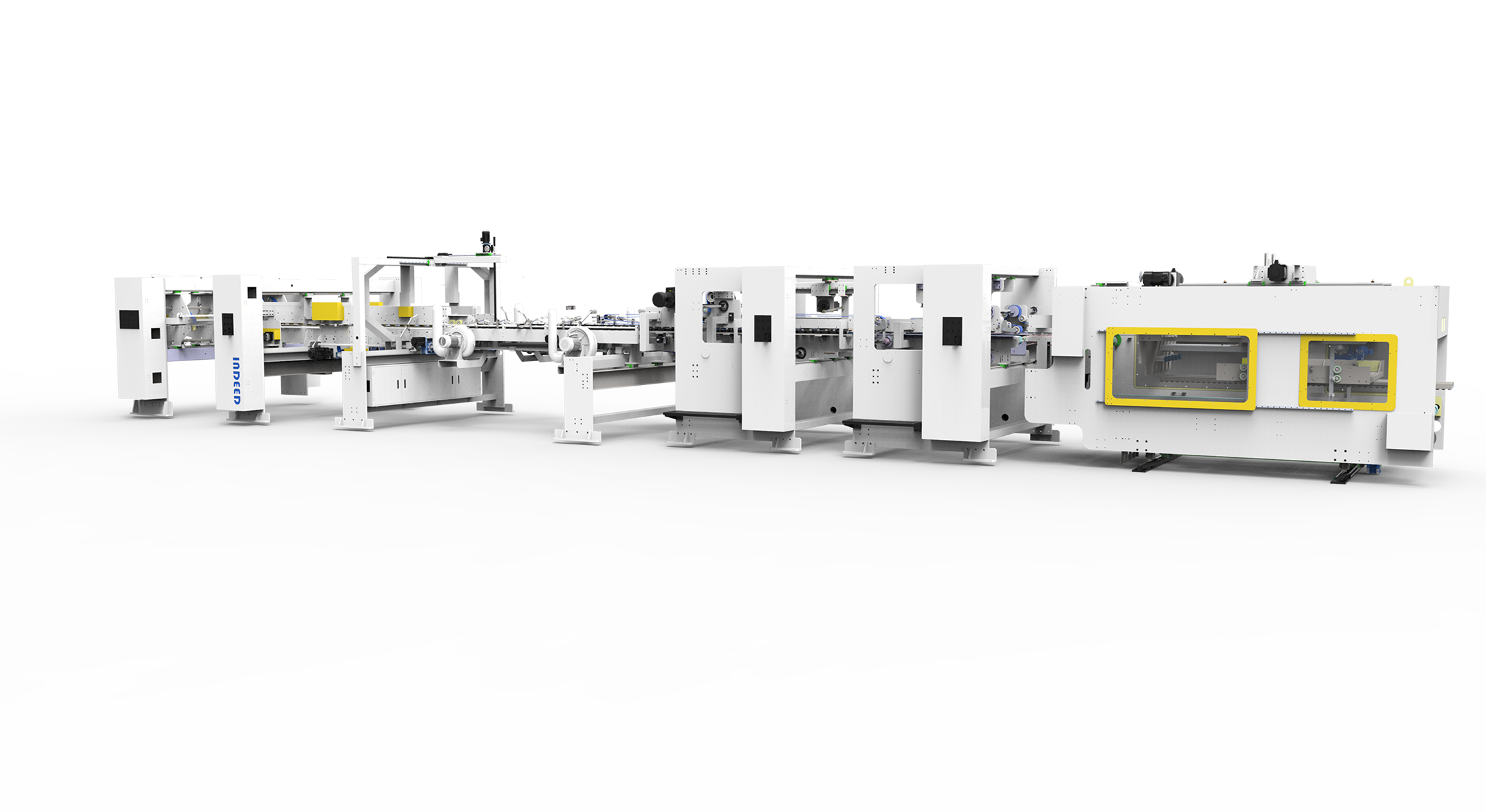

An all-around linkage line integrating upward folding, gluing, and stitching. It supports both gluing and stitching in one machine for higher flexibility and utilization. Full-servo drive ensures high precision, low failure, and easy maintenance. Suitable for heavy-duty corrugated cartons, large packaging, home appliance packaging, and other scenarios, greatly improving line productivity and product consistency.
Parameters
| Model | IG-1224UD | IG-1228UD | IG-1628UD | IG-1632UD | IG-2540UD | |
| Max Gluer Speed (M/M) | 300 | |||||
| Max Stitch Speed (Nails/M) | 1200 | |||||
| L2 | Max (mm) | 800 | 850 | 850 | 950 | 1200 |
| Min (mm) | 230 (S 250) | 230 (S 250) | 260 (S 280) | 300 (S 320) | ||
| W1 | Max (mm) | 700 | 750 | 750 | 800 | 900 |
| Min (mm) | 130 (S 200) | 130 (S 200) | 160 (S 200) | 200 (S 220) | ||
| L2+W1 | Max (mm) | 1200 | 1400 | 1400 | 1600 | 2000 |
| Min (mm) | 360 (S 450) | 360 (S 450) | 420 (S 480) | 500 (S 540) | ||
| D2 | Max (mm) | 1200 | 1200 | 1600 | 2500 | |
| Min (mm) | 350 (S 400) | 400 (S 450) | 500 (S 550) | |||
| Glue Lap Width | 35mm-40mm | |||||
| Box Height | ≥70mm | |||||
| Suitable For Sheet | E-AB | |||||
Parameters
Parameters

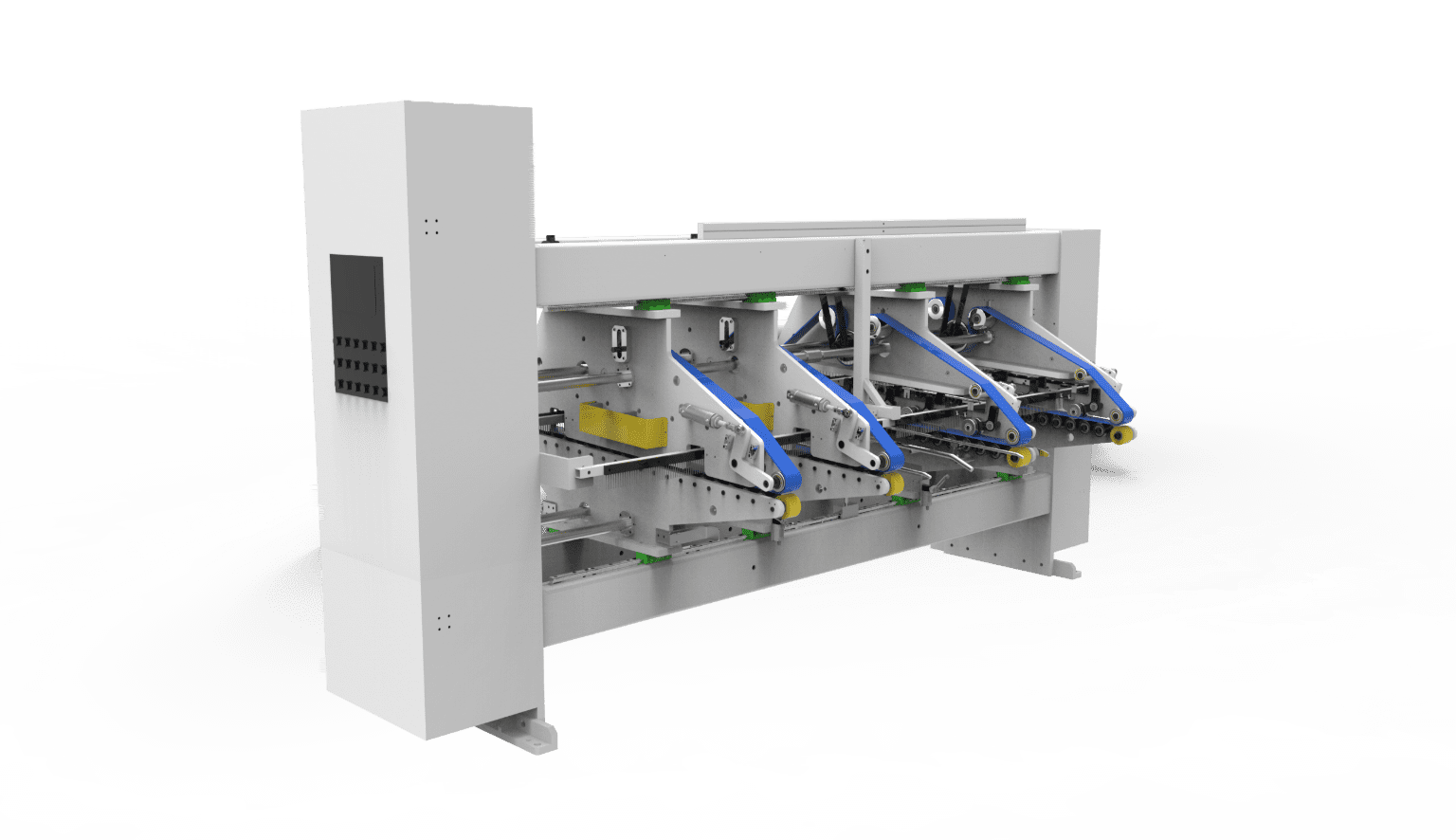

| SCRAPS CLEANING UNIT (OPTION) |
| ROLLING GLUE UNIT (OPTION VALCO OR HHS) |

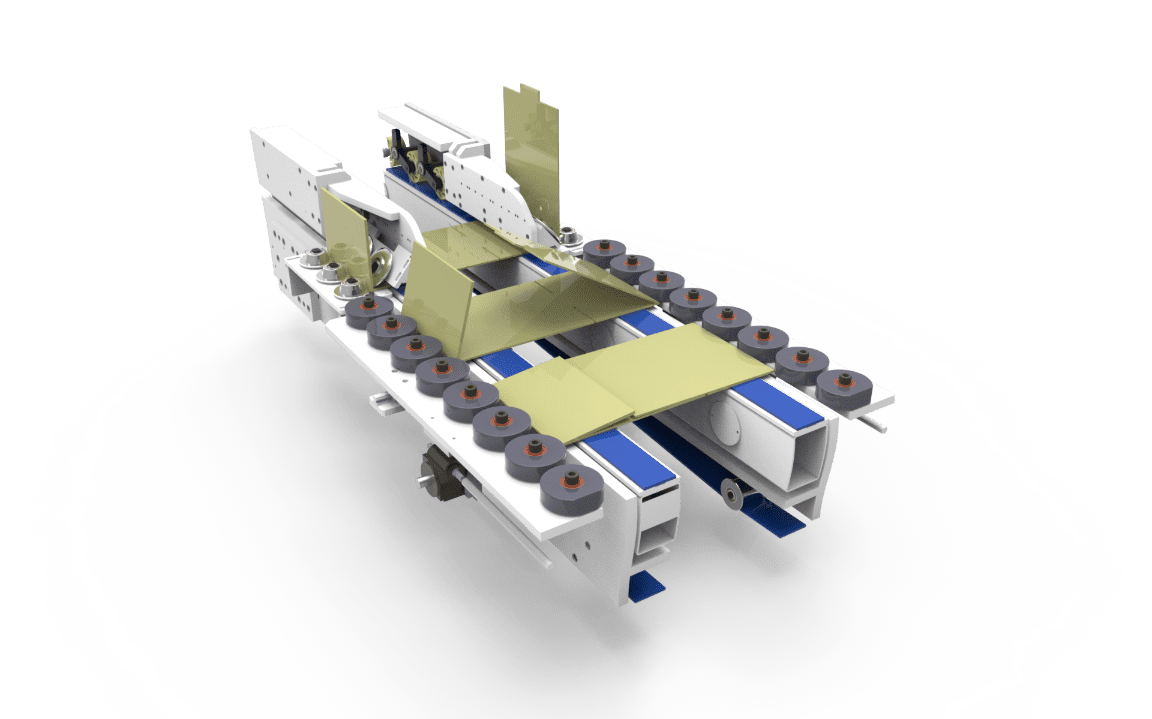

| FEEDER-CREASING AND CRUSHING UNIT |

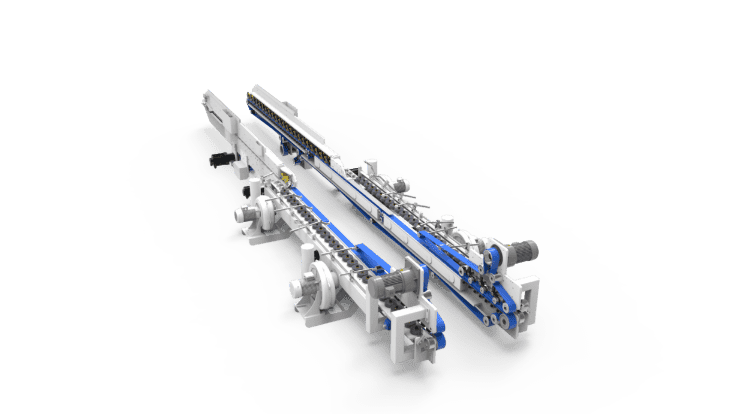

| FOLDING UNIT |

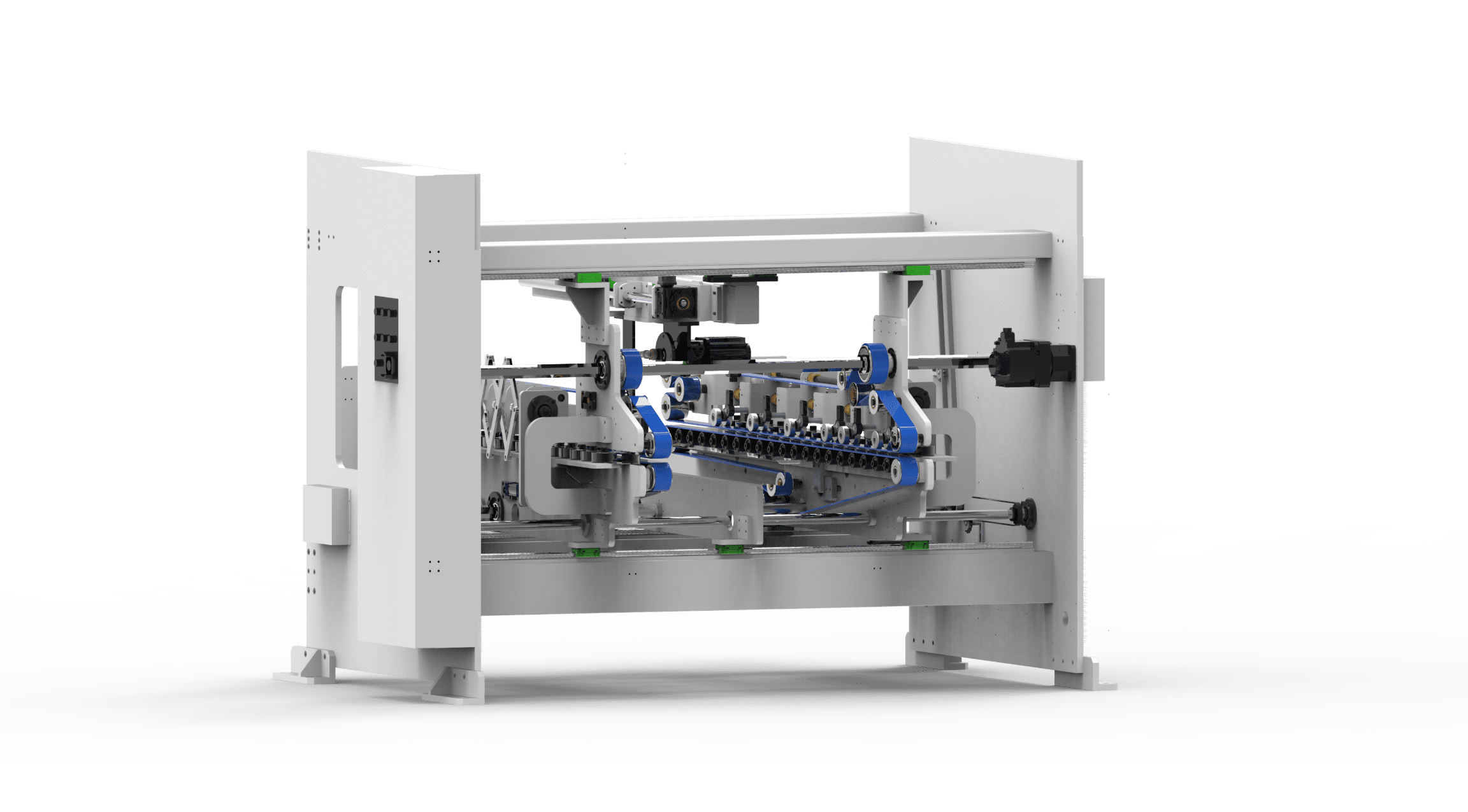

| SLAPPING UNIT |

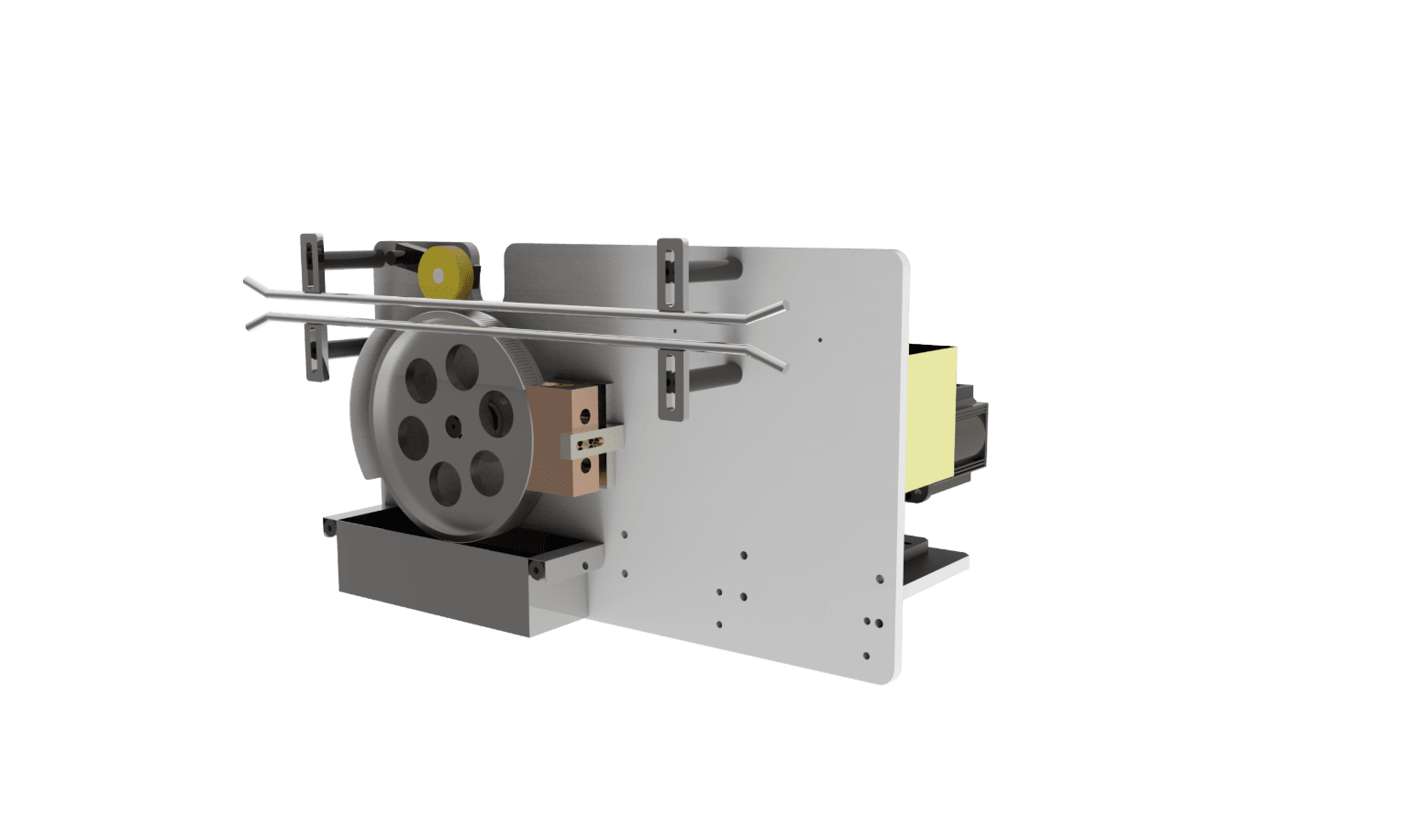

| STITCHING UNIT |

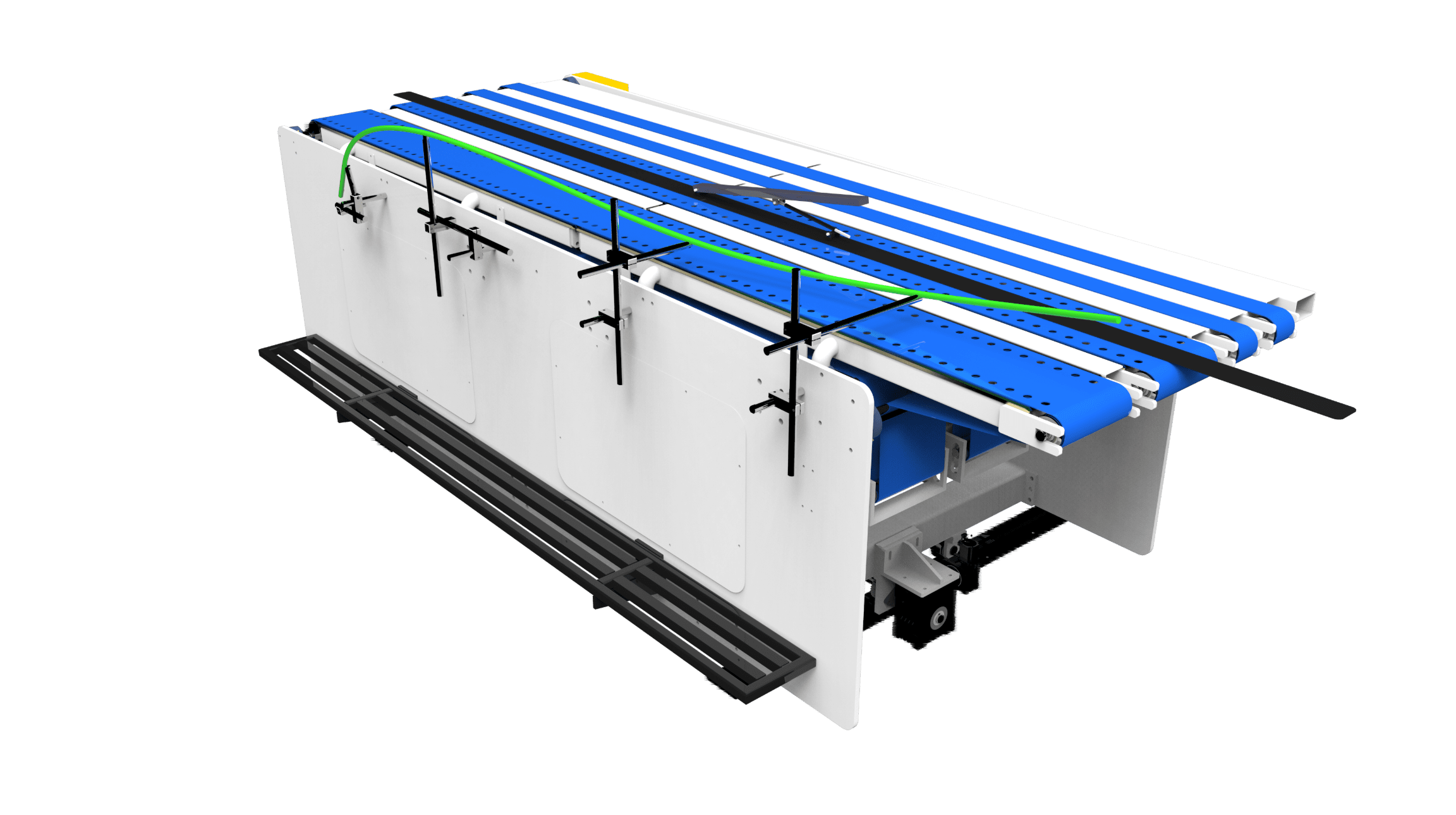

| AUTOMATIC TURN FOLDING |

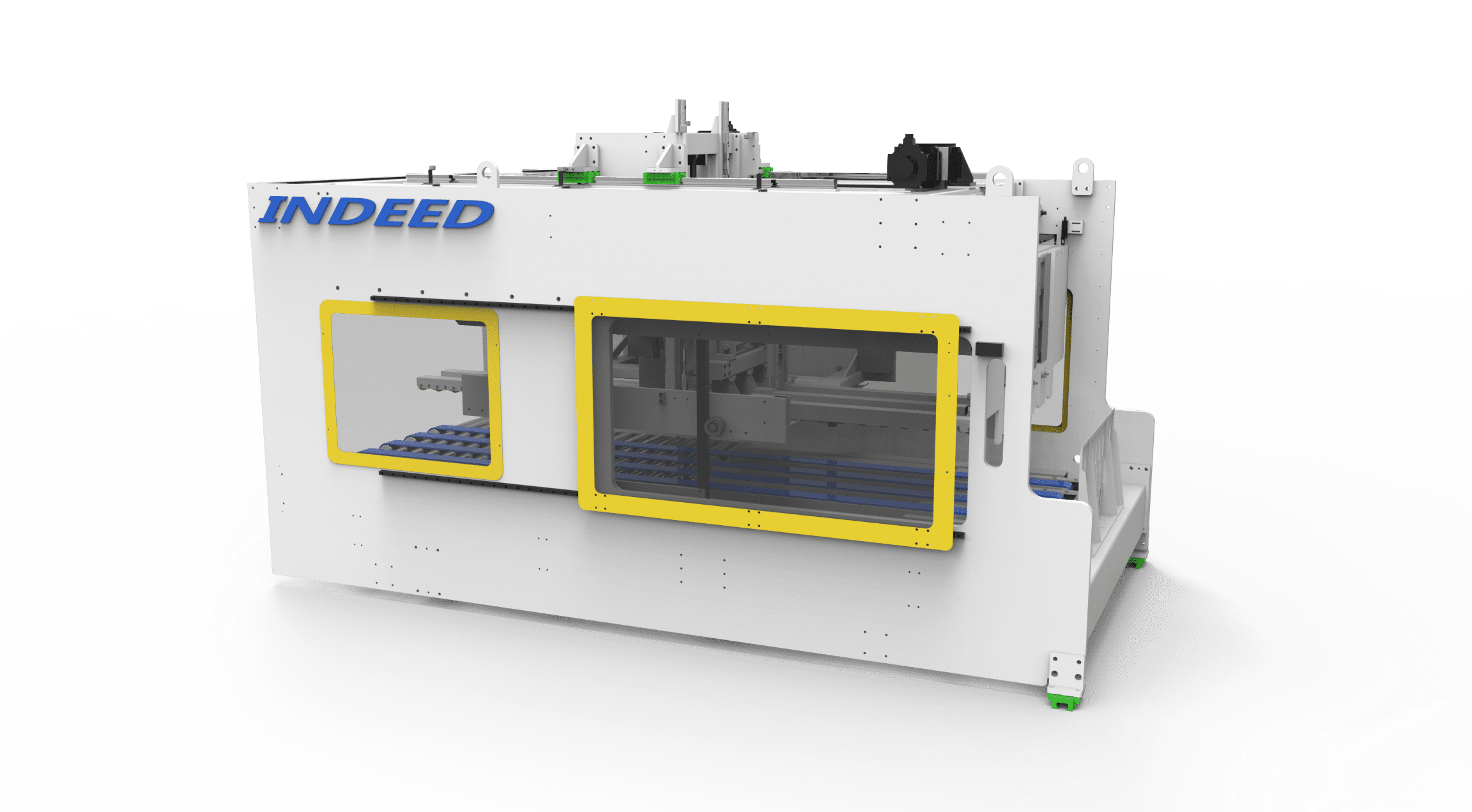

| COUNTER EJECTOR UNIT（TOP LOADING） |
